Wrap machine rotating arm Roto Wrap 1000 AE

Model Easy Wrap 2000 A is a semi-automatic machine for stretch-film wrapping of palletized loads with the possibility to adjust the film tension by means of a mechanical brake or motorized prestretch.

Description

Roto Wrap 1000 AE rotary pallet wrapper with electromagnetic clutch

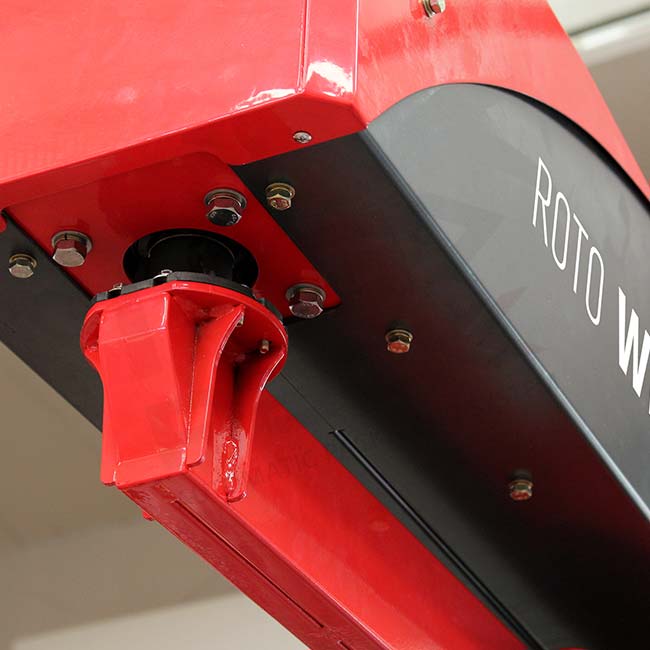

The Roto Wrap 1000 AE rotary-arm pallet wrapper allows you to palletize both heavy and light unstable loads. The starting system and the stopping of the driving wheel take place without recoil and without inertia, furthermore the fixed accident-prevention guards are not necessary since the self-braking motor combined with the front bumper (Bumper) instantly stops the rotation at the minimum contact with an obstacle. The structure of the machine is counterbalanced and requires fixing to the floor.

General characteristics of the pallet wrapper

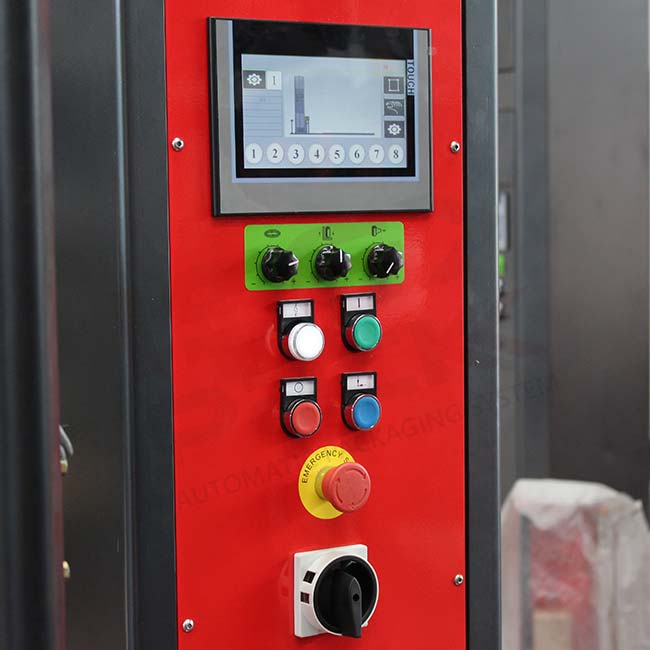

The Roto Wrap 1000 AE pallet wrapper is equipped with an electromagnetic clutch system and can process products with dimensions of L 1200 x W 1200 x H 2200 mm, supporting loads with unlimited weight. In addition to having the possibility of adjusting the number of revolutions on the lower and upper part of the pallet, it is also possible to adjust the gradual start of the rotation of the rotating arm by means of an inverter. The machine is equipped with a PLC and a 7.2 “color touch screen display that allows you to manage parameters such as the speed of carriage ascent and descent, photocell reading delay, cycle counter, etc.

Features and parameters

Specification

Spoiler title

Film roll features

Specification

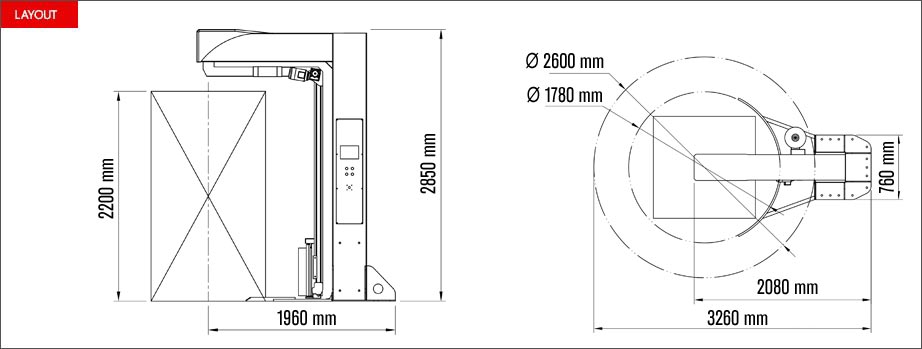

Machine dimensions	L 3260 x W 1780 x H 2850 mm
Weight machine	700 Kg
Max product weight	No limit
Arm rotation speed	15 rpm
Carriage up-down speed	1,4 – 4 (m/min)

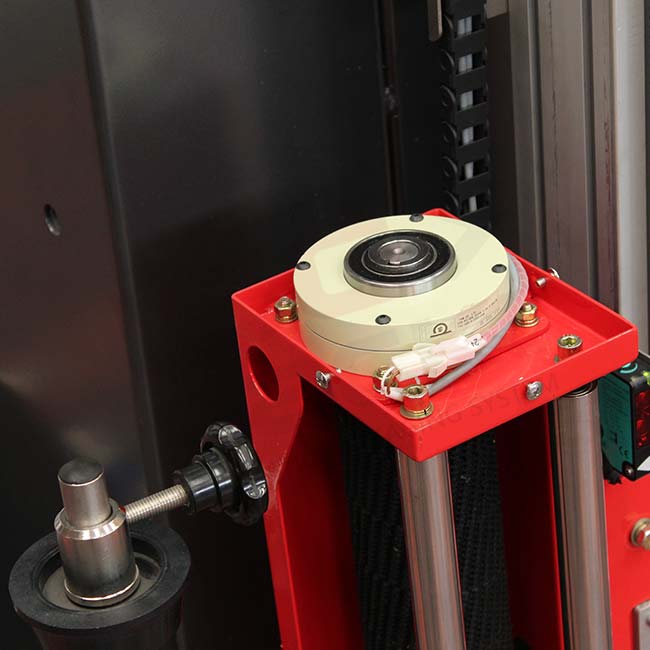

Film tensioning	Electromagnetic clutch
Maximum pallet dimensions	L 1200 x W 1200 x H 2200 mm.
Power supply	220 Volt 1Ph
Power supply frequency	50/60 Hz
Installed power	1 Kw
Max dimension film roll	H 500 mm Ø 280 mm
Film roll max weight	16 Kg
Film roll thickness	12 – 35 (µm)
Photoeye to detect door height	std

Spoiler title

Film roll features
