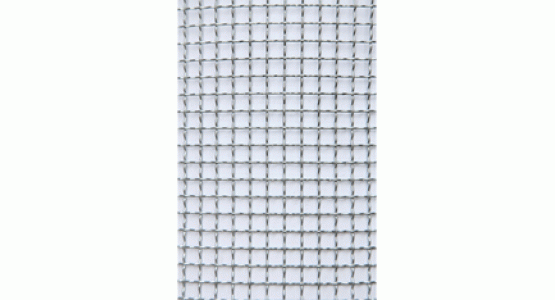

Stainless Wire Meshes
Meshes made of 304 and 316 quality stainless steel which are most commonly used in the food industry are very important for sifting and cleaning section.
– Nontoxic
– Odorless
– Large elongation and excellent elasticity
– High strength and stiffness at higher temperatures
– Resistant to infestation and to corrosion
No P:FR | Mesh Openings (mm) | Wire (mm) | Opening Area (%) |
2,5 | 10,01 | 1,1 | 81 |
3 | 8,36 | 0,9 | 81,6 |
4 | 6,14 | 0,8 | 78,2 |
4,5 | 5,37 | 0,8 | 75,5 |
5 | 4,86 | 0,7 | 76,2 |
6 | 4,03 | 0,6 | 75,8 |
7 | 3,42 | 0,55 | 74,3 |
8 | 2,97 | 0,5 | 73,2 |
9 | 2,64 | 0,45 | 72,5 |
10 | 2,38 | 0,4 | 73,4 |
12 | 1,99 | 0,32 | 73,89 |
14 | 1,7 | 0,28 | 73,41 |
16 | 1,46 | 0,28 | 70,73 |
18 | 1,28 | 0,26 | 68,8 |
20 | 1,15 | 0,24 | 68,56 |
22 | 1,02 | 0,24 | 65,25 |
24 | 0,94 | 0,22 | 65,96 |
26 | 0,84 | 0,22 | 63,29 |
28 | 0,79 | 0,2 | 63,29 |
30 | 726 | 0,02 | 61,47 |
32 | 688 | 0,18 | 62,82 |
No P:FR | Mesh Openings (mm) | Wire (mm) | Opening Area (%) |
34 | 657 | 0,16 | 64,65 |
36 | 612 | 0,16 | 62,9 |
38 | 571 | 0,16 | 61 |
40 | 544 | 0,14 | 63,64 |
42 | 521 | 0,14 | 62,05 |
44 | 491 | 0,14 | 60,49 |
46 | 464 | 0,14 | 59,04 |
48 | 439 | 0,14 | 57,55 |
50 | 436 | 0,12 | 61,59 |
52 | 414 | 0,12 | 60 |
54 | 394 | 0,12 | 58,6 |
56 | 376 | 0,12 | 57,4 |
58 | 359 | 0,12 | 56,19 |
60 | 343 | 0,12 | 56,94 |
62 | 328 | 0,12 | 53,56 |
66 | 311 | 0,11 | 54,65 |
70 | 287 | 0,11 | 52,3 |
75 | 270 | 0,1 | 53,14 |
80 | 247 | 0,1 | 50,58 |
85 | 227 | 0,1 | 48,23 |
Sifting Group
The grain grinded in the roller mills is sifted and classified through the Plansifter, Control Sifter, Vibro Sifter and the Semolina Purifier according to the diagram of the mill. You can supply sieve boxes, insert frames, sieve cleaners, wire mesh or nylon sieves and other products from Depart.
